Current Probes
Compatible with Dranetz Portable Power Quality Analyzers
All Current Probes listed here are compatible with Dranetz portable power quality analyzers: Dranetz HDPQ® Xplorer, Dranetz HDPQ® Guide, Dranetz HDPQ® Visa, PowerXplorer, PowerGuide, PowerVisa, PowerGuia, Energy Platform, PP4300, 658 with CA4300 adapter; and Dranetz permanent instruments: Encore 61000 with 61MAC module, Signature System 5513. Adapters are available for use with other instrument configurations; contact us for details. Dranetz recommends only Dranetz-brand probes be used with Dranetz power quality equipment.

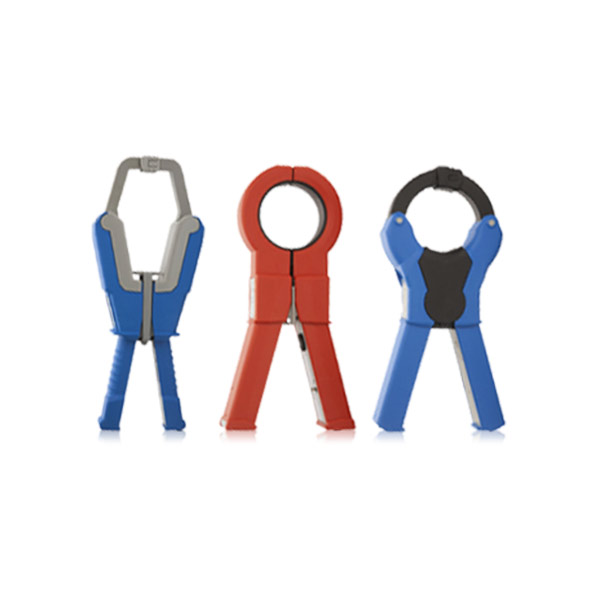

Shown: Dranetz Current Probes – AC/DC and AC Only
Note: These are guidelines only. Many other factors will influence the stated accuracy, including but not limited to; temperature, humidity, frequency and conductor position. Model numbers and specifications subject to change without notice.
The current probes shown above have a 1.5V output, Dranetz Hypertronics connector, 2 meter cable and are directly compatible with the following Dranetz products:
Portable Power Quality Analyzers: Dranetz HDPQ family, PowerXplorer, PowerGuide, PowerVisa, PowerGuia, Energy Platform, PP4300, 658 with CA4300 adapter.
Permanent Power Quality Analyzers: Encore 61000 with 61MAC module, Signature System 55XX. Adapters are available for use with other instrument configurations.
Please contact the factory for details.
Request a Quote
TR-2500B 10A-500ARMS CT
1.5V output, Dranetz Hypertronics connector, 3 meter cable.
TR-2520B 100A-3000ARMS CT
1.5V output, Dranetz Hypertronics connector, 3 meter cable.
TR-2501B 100 mA to 1.2ARMS-CT
1.5V output, Dranetz Hypertronics connector, 3 meter cable.
TR-2510B 1A-10ARMS CT
1.5V output, Dranetz Hypertronics connector, 3 meter cable.
TR-2550B 1A-100ARMS CT
1.5V output, Dranetz Hypertronics connector, 3 meter cable.
TR-2530B 20A-300ARMS CT
1.5V output, Dranetz Hypertronics connector, 3 meter cable.
TR-2540B 10A-1000ARMS CT
1.5V output, Dranetz Hypertronics connector, 3 meter cable.
PR150/SP1B 150A CT
AC power only. Requires one ACADP-PR9VUS AC adapter for each probe. UK, Euro Plugs available.
PR150/SP2B 150A CT
9v battery powered only.
PR1500/SP7B 1500 CT
AC power only. Requires one ACADP-PR9VUS AC adapter for each probe. UK, Euro Plugs available.
PR1500/SP8B 1500 CT
9v battery powered only.
| Model | Range | Amplitude Accuracy ± | Phase Accuracy +/- | Frequency Range | Maximum Conductor Size | Rated Voltage | Connector/Output | |
|---|---|---|---|---|---|---|---|---|
| Clamp CT’s | ||||||||
| TR2500B | 10A to 500Arms | 100A to 500A | 1% | 1.5° | 40Hz to 5KHz | 50mm dia. | 600v Max. | Dranetz 1.5V |
| 10A to 100A | 2% | 3° | ||||||
| TR2501 | 100mA to 1.2Arms | 1.2A | 1.5% | 1° | 40Hz to 5KHz | 15mm dia. | 600v Max. | Dranetz 1.5V |
| 100mA | 2° | |||||||
| TR2510B | 1A to 10Arms | 5A to 10A | 1.2% | 1.5° | 40Hz to 5KHz | 15mm dia. | 600v Max. | Dranetz 1.5V |
| 1A to 5A | 2% | 1° | ||||||
| TR2520B | 100A to 3000Arms | 1000A to 3000A | 0.5% | 0.5° | 40Hz to 5KHz | 72mm dia.* | 600v Max. | Dranetz 1.5V |
| 0.75% | 0.75° | |||||||
| 1.5% | 1.5° | |||||||
| TR2530B | 20A to 300Arms | 50A to 300A | 1% | 0.5° | 30Hz to 5KHz | 54mm dia. | 600v Max. | Dranetz 1.5V |
| 20A to 50A | 1.5% | 0.6° | ||||||
| TR2540B | 10A to 1000A | 100A to 1000A | 1% | 0.4° | 30Hz to 5KHz | 54mm dia. | 600v Max. | Dranetz 1.5V |
| 10A to 100A | 1.5% | 0.5° | ||||||
| TR2550B | 1A to 100Arms | 10A to 100A | 1% | 2.5° | 40Hz to 10KHz | 15mm dia. | 600v Max. | Dranetz 1.5V |
| 1A to 10A | 2% | 5° |
