- Direct measurement up to 690V, CATIII
- Measures: V, I, W (P), VA (S), VAR (Q), PF, Demand, Energy, process parameters & much more
- Color display – 3.5″ or 5.0″ TFT (model dependent)
- Web server for real time meters, setup, reporting (requires Ethernet)
- Enhanced security: Roles Based Access Control (RBAC), https, client white list, security log
- PQ Disturbance recorder, 1/2 cycle RMS values per IEC 61000-4-30 (model/option dependent)
- Limit & condition monitoring with alarming
- Harmonic analysis in accordance with IEC 61000-4-7
- System imbalance monitoring
- Ethernet, RS485, Modbus, Profinet, IEC 61850 (model/option dependent)
- Standard Digital I/O. Optional Analog outputs, Relays, Digital inputs
- Temperature monitoring (optional)
- Fault detection (optional)
- Compatible with SmartCollect software or your own software (via Modbus & other protocols)
- UL and CE Compliant. 3 Year Warranty
| AM Series
Energy Meters |

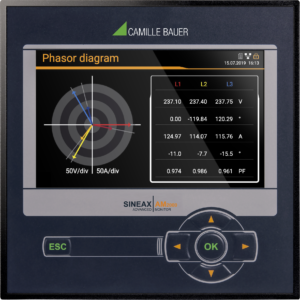

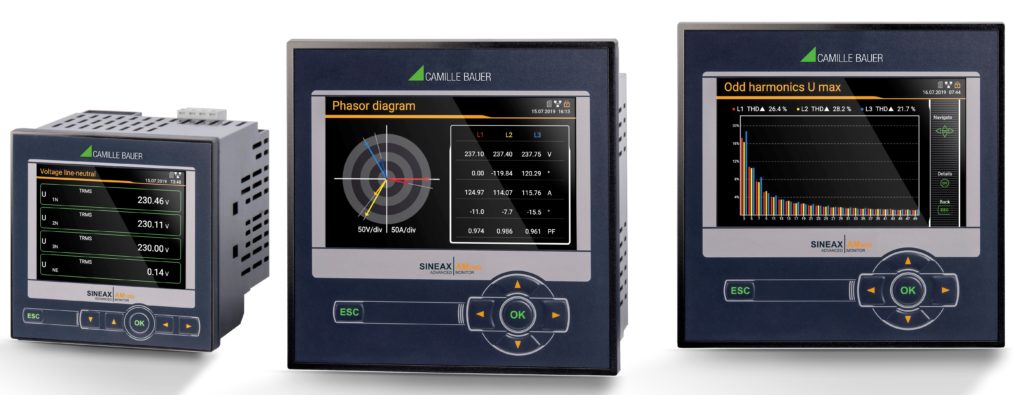

AM1000 | AM2000 | AM3000 | |
|---|---|---|---|---|
 |
 |
 |
||
| Enclosure | ||||
| Panel Cutout |
96mm x 96mm x 85mm | 144mm x 144mm x 65.2mm |
144mm x 144mm x 65.2mm |
|
| Display |
3.5″ TFT color (320x240px) | 5.0″ TFT color (800x480px) |
5.0″ TFT color (800x480px) | |
| Power Supply |
||||
| Range | 100-230V AC/DC 24-48V DC (optional) |
110-230V AC/130-230V DC 110-200V AC/DC (optional) 24-48V DC (optional) |
110-230V AC/130-230V DC 110-200V AC/DC (optional) 24-48V DC (optional) |
|
| Consumption | ≤18 VA, ≤8 W | ≤30 VA, ≤13 W | ≤30 VA, ≤13 W | |
| Measured Values |
||||
| Input channels voltage / current | 3 / 3 | 3 /3 | 4 / 4 |
|
| Instantaneous values | • | • | • | |
| Extended reactive power analysis | • | • | • | |
| Imbalance analysis | • | • | • | |
| Neutral current | Calculated | Calculated | Measured / Calculated | |
| Earth wire current (calculated) | • | • | • | |
| Zero displacement UNE | Calculated | Calculated | Measured / Calculated | |
| Energy balance analysis | • | • | • | |
| Harmonic analysis | • | • | • (incl. phase angle) |
|
| Operating hour counters device / general | 1 / 3 |
1 / – | 1 / 3 | |
| Monitoring functions | • | • | • | |
| Visualization waveform V/I | • | • | • | |
| Measurement Uncertainty |
||||
| Voltage, current | ±0.2% | ±0.2% | ±0.1% | |
| Active, reactive, apparent power | ±0.5% | ±0.5% | ±0.2% | |
| Frequency | ±10mHz | ±10mHz | ±10mHz | |
| Active energy (IEC 62053-21/22) | Class 1 | Class 1 | Class 0.2S | |
| Reactive energy (IEC 62053-24) | Class 1 | Class 1 | Class 0.5S | |
| Data Logger (Optional, only with Ethernet) |
||||
| Memory | internal (≥8GB) | Micro SD card (≥16GB) | Micro SD card (≥16GB) | |
| Periodic + event recording | • | • | • | |
| PQ Disturbance recorder (with pretrigger) | • | – | • | |
| – 1/2 cycle RMS progression V/I | ≤3min. | – | ≤3min. | |
| – Curve shape V/I [#cycles] | 5/6 (pretrigger) +10/12 | – | 5/6 (pretrigger) +10/12 | |
| Communications | ||||
| Ethernet: Modbus/TCP, web server, NTP | (optional) | (optional) | (standard) | |
| IEC 61850 | (optional) | (optional) | (optional) | |
| PROFINET IO | (optional) | (optional) | (optional) | |
| RS485: Modbus/RTU | (optional) | (optional) | (optional) | |
| Standard I/Os | 1 dig. OUT ; 1 dig. IN/OUT | 1 dig. IN ; 2 dig. OUT | 1 dig. IN ; 2 dig. OUT | |
| Extension modules (optional) | max. 1 module | max. 4 modules | max. 4 modules | |
| Safety | ||||
| cULus | • | • | • | |
| CE | • | • | • | |
