Dranetz HDPQ® Plus & SP Family
- Record sags/dips, swells, interruptions, transients, harmonics, flicker, RVC, power, demand, energy and much more
- Dran-View 7 Software For Analysis, Reporting & Remote Control. Mobile Apps For Remote Control
- IEC 61000-4-30 Class A Edition 31. Certificate (portable only)
- Choose from 4 Models to Meet Any Budget & Monitoring Needs
- Your Choice of 2 Enclosures for Each Model: Portable (with display) or SP (IP65 without display)
- Ethernet & Wireless Remote Control
- Colored Cables & Connectors (Plus only)
- Large 7″ Viewing Screen (Portable Only)
- Power From the Phase (SP Versions Only)
- See Our Webcast Page for HDPQ, Dran-View 7 and Other Training Videos
- UL and CE Compliant. 3 Year Warranty
Items in RED Differentiate the Models Below

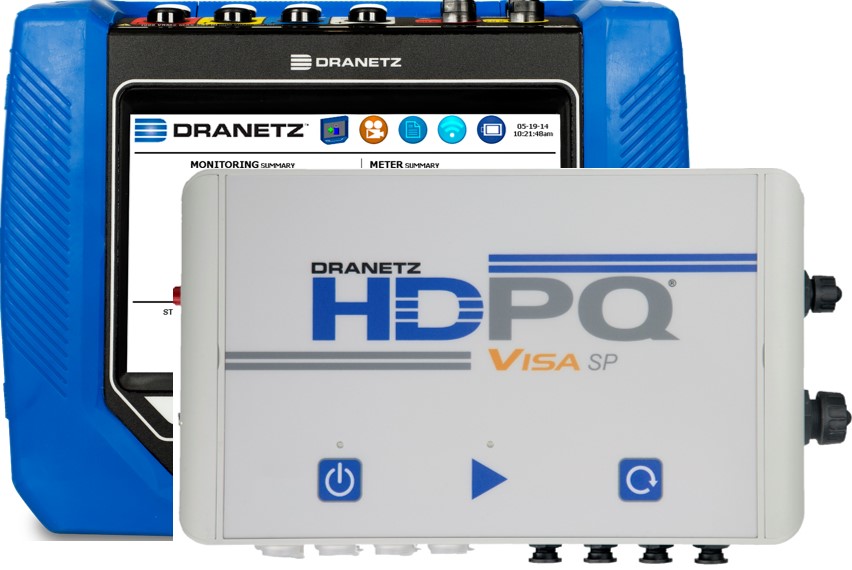

| Dranetz HDPQ® Family Instrument Features | Visa Plus Visa SP |

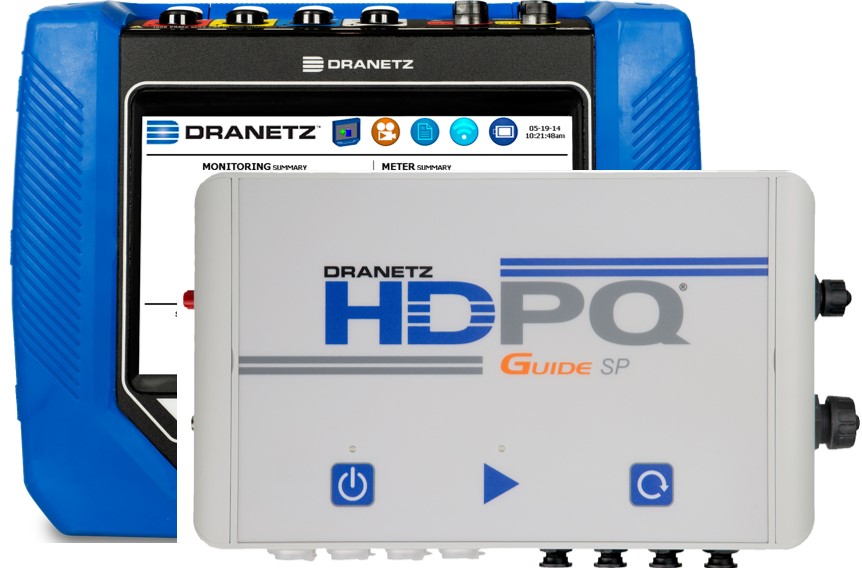

Guide Plus Guide SP |

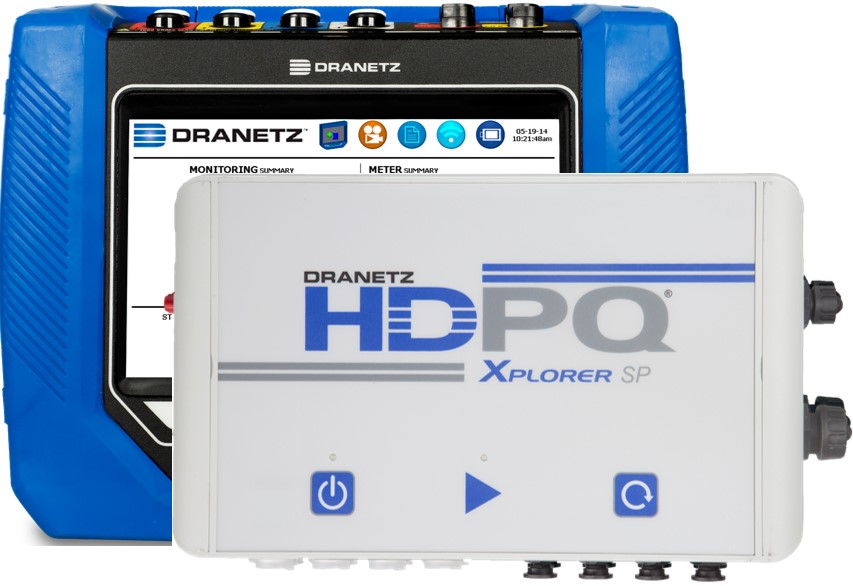

Xplorer Plus Xplorer SP |

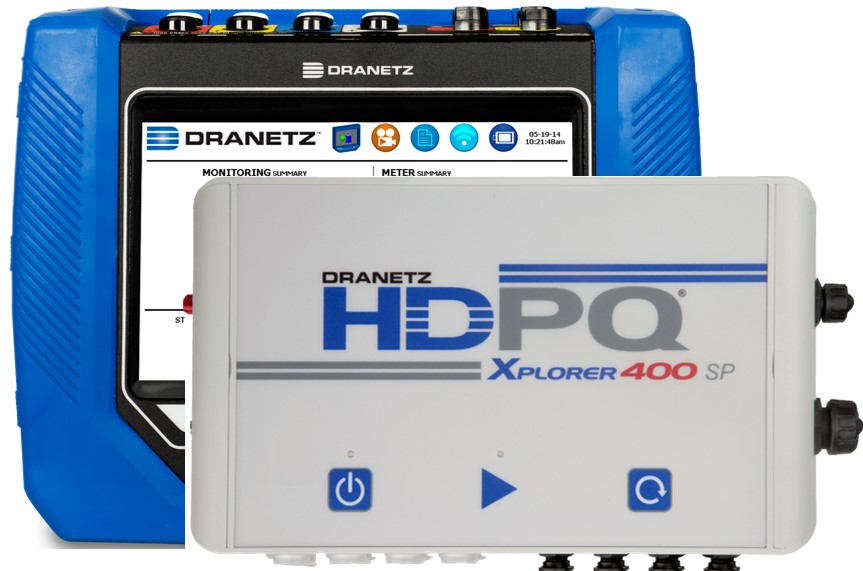

Xplorer 400 Plus Xplorer 400 SP |
|---|---|---|---|---|
 |
 |
 |
 |
|
| Enclosure | ||||

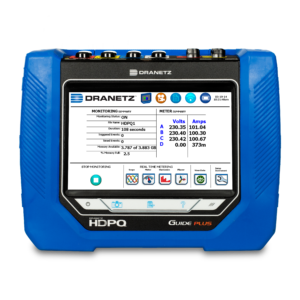

| Portable with 7″ Touch Screen | HDPQ Plus Portable | HDPQ Plus Portable | HDPQ Plus Portable | HDPQ Plus Portable |
| SP IP65 without display | HDPQ SP | HDPQ SP | HDPQ SP | HDPQ SP |
| Power Supply |
||||
| AC Power; 90-264, 50/60Hz | HDPQ Plus Portable | HDPQ Plus Portable | HDPQ Plus Portable | HDPQ Plus Portable |
| AC/DC Power: 90-600VAC/500VDC, CAT IV, 50/60Hz | HDPQ SP | HDPQ SP | HDPQ SP | HDPQ SP |
| Communications | ||||
| Ethernet | X | X | X | X |
| Wi-Fi | _ | X | X | X |
| USB | X | X | X | X |
| Dran-View 7 Full Remote Control & Data Downloading | X | X | X | X |
| Apple & Android VNC Apps for Full Remote Control | X | X | X | X |
| GPS Time Synch | X | X | X | X |
| Measurements | ||||
| (4) Differential, AC/DC Voltage Channels, 0-1000V | X | X | X | X |
| (4) Differential, AC/DC Current Channels, FLEX Power | X | X | X | X |
| 1000V Cat III, 600V CAT IV | X | X | X | X |
| IEC 61000-4-30 Class A Edition 31 | X | X | X | X |
| 512 Samples/Cycle/Channel on V & I | X | X | X | X |
| Sag/Dip, Swell, Interruption | X | X | X | X |
| Transients to 32us/40us (60Hz/50Hz) | X | X | X | X |
| Transients to 1us | X | X | ||
| Demand & Energy | X | X | X | X |
| IEEE 1459 Advanced Energy | X | X | X | |
| Harmonics V/I – IEEE 519:2014 | 127/63 | 127/63 | 127/63 | 127/63 |
| EN 50160 Edition 3 | X | X | X | X |
| 400Hz monitoring | X | |||
| AnswerModules | ||||
| Motor Health | X | X | X | X |
| Sag Directivity | X | X | X | |
| Power Factor Correction Capacitor | X | X | X | |
| Setups | ||||
| Automatic Setups for PQ, Demand & Energy | X | X | X | X |
| Manual Setup Wizard | X | X | X | X |
| Monitoring Modes | 7 | 9 | 9 | 9 |
| Max Pre & Post Trigger Cycles | 100 | 10,000 | 10,000 | 10,000 |
| Number of Transient Triggers | 3 | 3 | 4 | 4 |
| Safety | ||||
| cULus | X | X | X | X |
| CE | X | X | X | X |
1: Testing of the SP products to IEC 61000-4-30 Class A Ed 3 is ongoing
