PQ3000

Class A PQ Monitoring Combined with 4 Quadrant Energy Metering!

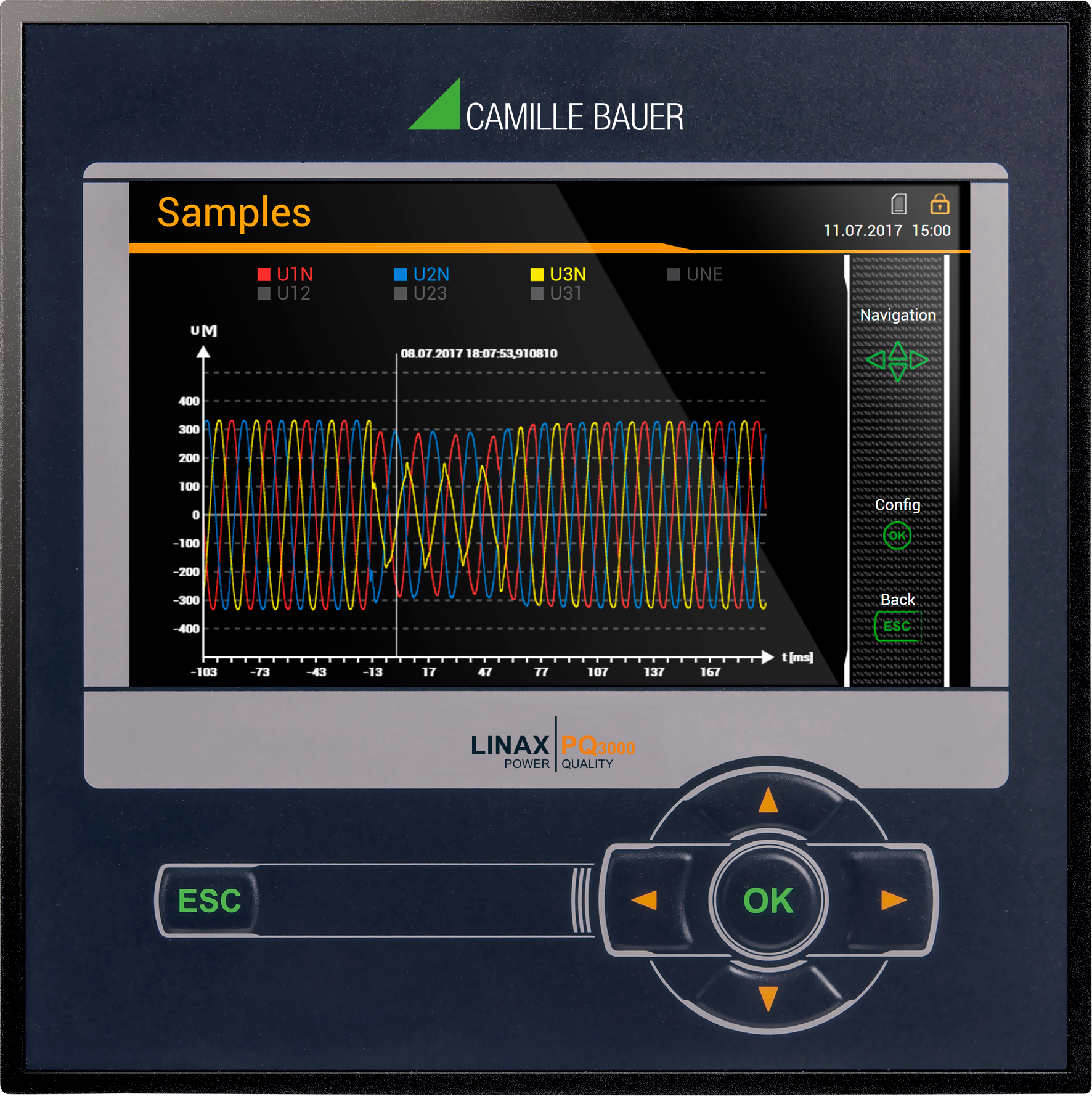

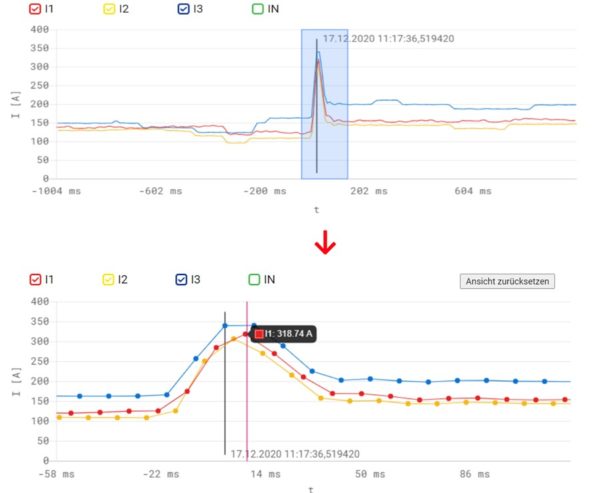

From GMC-Instruments Group company Camille Bauer, the PQ3000* is a cost effective monitoring solution that combines PQ monitoring (with waveform recording) and 4 quadrant energy monitoring in one instrument. Wide-ranging applications include utility, facility, manufacturing, petro chemical, mission critical and more. The PQ3000 is housed in a 144mm x 144mm panel mounted enclosure with a high resolution, color TFT display. The PQ3000 is fully compliant with IEC 61000-4-30 Edition 3 Class A for trustworthy PQ measurements. It can detect and record waveforms for sags/dips, swells, interruptions, as well as recording flicker, harmonics and more, all in parallel with complete energy metering capabilities. Digital I/O provides the ability to read alarms and provide state/condition based monitoring and alarming. IEC 61850, Modbus and Profinet are available for remote communications with 3^rd party SCADA and other monitoring systems.

Panel mounted (144mm x 144mm) PQ & Energy monitoring
IEC 61000-4-30 Class A Edition 3 compliant. Certificate of Conformity from an independent laboratory
PQDIF, Modbus, IEC 61850, Profinet communications
Web server for real time meters, setup, reporting
Enhanced security: Roles Based Access Control (RBAC), https, client white list, security log
State & condition based monitoring & alarming. Temperature & fault current monitoring
PQView DE, PQView, DranSCADA compatible

View the PQ3000/PQ5000 brochure on our Product Brochures page.

*Camille Bauer manufacturers the Linax PQ3000 and the Dranetz PQ3K. The PQ3K has been discontinued and replaced by the PQ3000 which is a form, fit and functional equivalent. The PQ3000 and PQ3K are the same product with different brand names.

Schedule a Demo

Request a Quote

Description

Specifications
Options & Accessories

INPUTS

Voltage
Channels: (4) AC
Nominal Voltage: 57.7 … 400 VLN, 100 … 693 VLL
Overload capacity: 480 VLN, 832 VLL (permanent)
Nominal frequency: 42 … 50 … 58 Hz, 50.5 … 60 … 69.5 Hz
Current
Channels: (4) AC
Nominal Current: 1 … 5 A (max. 7.5 A)
Overload capacity: 10 A (permanent), 100 A, 5×1 s, interval 300 s
Sampling rate: 18 kHz

TYPES OF CONNECTIONS

Single phase
Split phase
3 or 4-wire balanced load
3-wire balanced load [2U, 1I]
3-wire unbalanced load, Aron connection
3 or 4-wire unbalanced load
4-wire unbalanced load, Open-Y

I/O-INTERFACES

DIGITAL INPUTS PASSIVE (standard)
Nominal voltage: 12/24 V DC (30 V max.)
DIGITAL INPUTS ACTIVE (optional)
Open circuit voltage: ≤ 15 V
RELAYS (optional)
Contacts: Changeover contact
Load capacity: 250 V AC, 2 A, 500 VA; 30 V DC, 2 A, 60 W
DIGITAL OUTPUTS 2 (standard)
Nominal voltage: 12/24 V DC (30 V max.)
ANALOG OUTPUTS (optional)
Linearization: Linear, kinked
Range: ± 20 mA (24 mA max.), bipolar
Accuracy: ± 0.2 % von 20 mA
Burden: ≤ 500 Ω (max. 10 V/20 mA)
FAULT CURRENT MONITORING For grounded systems (optional)
Number of meas. channels: 2 (2 measurement ranges each)
Measurement range :1 (1A) Earth current measurement
• Measuring transformer: 1/1 up to 1/1000 A
• Alarm limit: 30 mA up to 1000 A
Measurement range: 2 (2mA) RCM with connection monitoring
• Measuring transformer: Residual current transformer 500/1 up
to 1000/1 A
• Alarm limit: 30 mA up to 1 A
TEMPERATURE INPUTS (optional)
Number of channels: 2
Measurement sensor: Pt100 / PTC; 2-wire

CYBER SECURITY (OT) / CYBER PROTECTION

Role-based access authorization (RBAC)
Hypertext Transfer Protocol Secure (https)
Client Whitelist / Client IEC61850 Whitelist [Firewall]
Audit log [Registration alter manipulation]
Sys-Log
Secure firmware updates
Data logger & Uninterruptible Power Supply (UPS)
Data export
Secure (mobile) connection
PEN test

BASIC UNCERTAINTY ACCORDING IEC/EN 60688

Voltage, current: ±0.1 %
Power: ±0.2 %
Power: factor ±0.1°
Frequency: ±0.01 Hz
Imbalance: U, I ±0.5 %
Harmonic: ±0.5 %
THD: V, I: ±0.5 %
Active energy: Class 0.2S (IEC/EN 62 053-22)
Reactive energy: Class 0.5S (IEC/EN 62 053-24)

INTERFACES

ETHERNET (standard)
100Base TX; RJ45 socket
Mode: 10/100 MBit/s, full/half duplex, auto-negotiation
Protocols: Modbus/TCP, http, NTP (time synchronization)
IEC61850 (optional)
Ethernet 100BaseTX, RJ45 sockets, 2 ports
Mode: 10/100 Mbit/s, full/half duplex, auto-negotiation. Protocol: IEC61850, NTP
PROFINET IO (optional)
Conformance class: CC-B
100BaseTX, RJ45-Buchsen, 2 ports
Mode: 10/100 Mbit/s, full/half duplex, auto-negotiation
Protocol: PROFINET, LLDP, SNMP
MODBUS/RTU (optional)
RS-485, max. 1200 m (4000 ft)
Baud rate: 9.6 to 115.2 kBaud
TIME REFERENCE Internal clock
Clock accuracy: ± 2 minutes/month (15 to 30°C)
Synchronization via NTP server or GPS

INSTRUMENT POWER

Standard nominal voltage: 110…230 V AC, 130…230 V DC
Optional nominal voltage: 24 … 48 V DC
Optional nominal voltage: 110 … 200 V AC, 110 … 200 V DC
Consumption: ≤ 30 VA, ≤ 13 W

ENVIRONMENTAL CONDITIONS, GENERAL INFORMATION

Operating temperature without UPS: –10 to +55 °C
Operating temperature with UPS: 0 to +35 °C
Storage temperature: –25 to +70 °C
Temperature influence: 0.5 x basic uncertainty per 10 K
Long-term drift: 0.5 x basic uncertainty per year
Others Application group II (IEC/EN 60 688)
Relative air humidity <95 % without condensation
Operating altitude: ≤2000 m above NN
Only to be used in buildings!

MECHANICAL PROPERTIES

Housing material: Polycarbonate (Makrolon)
Flammability: class V-0 according UL94, self-extinguishing, not dripping, free of halogen
Weight: 800 g

SAFETY

Current inputs are galvanically isolated from each other.
Protection class II (protective insulation, voltage inputs via protective impedance)
Pollution degree 2
Protection IP54 (front), IP30 (housing), IP20 (terminals)
Measurement category U: 600 V CAT III, I: 300 V CAT III

Options
Modbus/RTU interface
For remote acquisition of measurements via control system

Extensions
Three optional extension modules can added to the device. You may select from:

2 relay outputs
2 analog outputs ±20mA
4 analog outputs ±20mA
4 S0 digital inputs active
4 S0 digital inputs passive
Temperature Inputs: Measurement sensor Pt100 / PTC
Fault current detection
Each fault current module provides two channels for monitoring differential or fault currents in earthed AC current systems. In any case measurement has to be performed via suitable current transformers, a direct measurement is not possible.
Time synchronization via GPS
Very accurate time synchronization of the measurement device using a pre-configured GPS receiver (accessory).
Uninterrupted power supply (UPS)
Provides power supply for five times 3 minutes if power fails
IEC61850 interface
PROFINET
