HDPQ Visa SP (Rated IP65) Power Quality Analyzer
$0.00
- Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more – Meets & Exceeds Industry Standards
- IEC 61000-4-30 Class A Edition 3 PQ compliant – Reliable Measurements from a Reputable Manufacturer
- Power Quality, demand & energy analysis – Complete Power Monitoring Surveys
- Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more
- Powered by the Phase Being Measured!
- IP65 enclosure
- Dran-View 7 Software – Powerful Data Analysis, Reporting & Remote Control
- Ethernet Communications for Remote Control & Data Downloading – Be Safe & Productive
- Tests 50/60Hz and 16/25Hz
- Also available as a true portable with a 7″ display – See the Dranetz HDPQ Visa Plus
- 3 year factory warranty
- Made in the USA in our ISO 9001:2015 certified factory

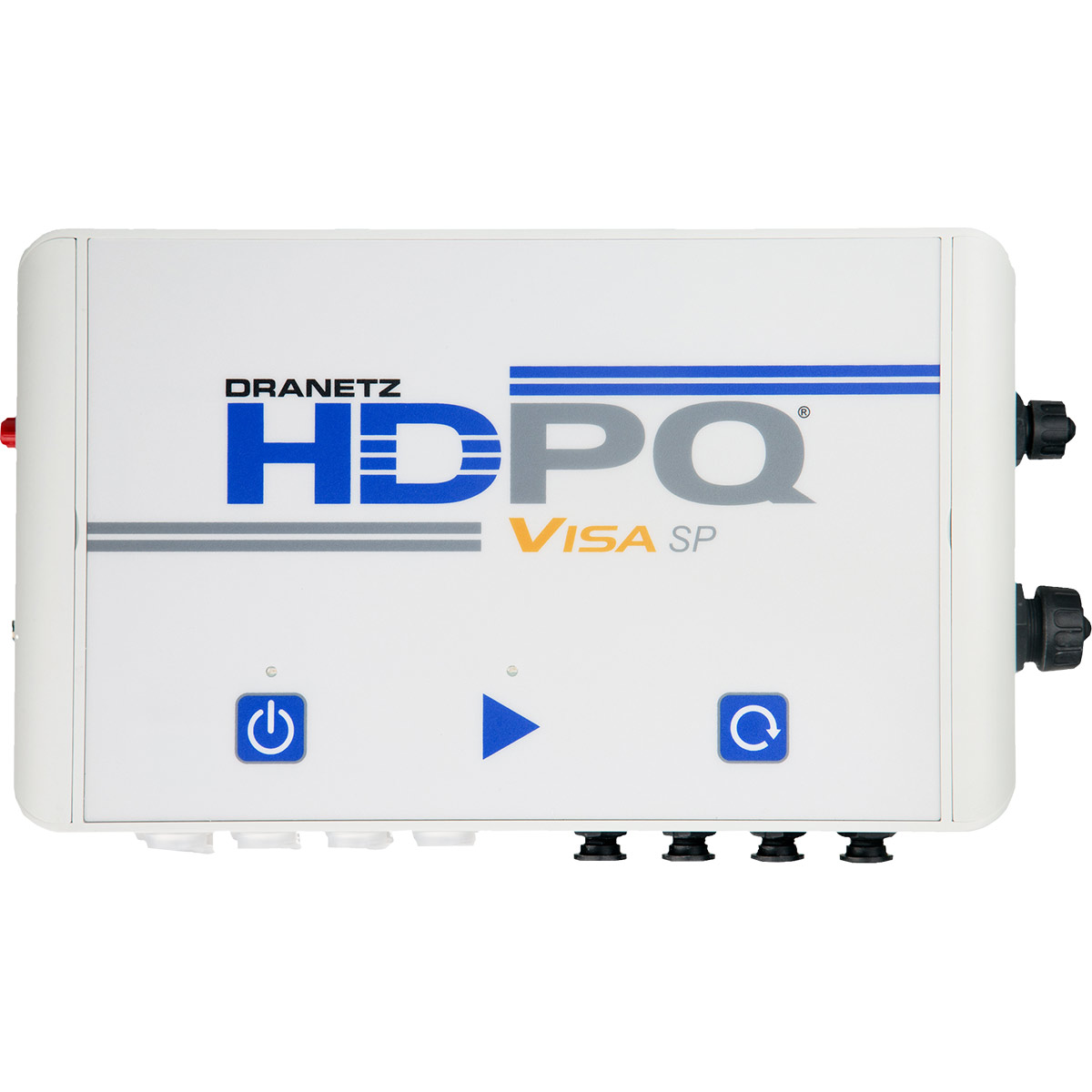

The Dranetz HDPQ® Visa SP (IP65) power quality analyzer offers the best value in power quality, demand, and energy monitoring from Dranetz, or any other Power Quality analyzer manufacturer! No other product at this price point comes close to matching the benefits and features provided by the Dranetz HDPQ Visa! The Dranetz HDPQ Visa SP has the same measurement and communications capabilities as the HDPQ Visa Plus, but is housed in an IP65 enclosure without an LCD display, and can also be powered by the circuit being measured. The IP65 enclosure of the Dranetz HDPQ Visa SP greatly expands the applications of the Dranetz HDPQ Visa into outdoor and harsh environments, along with other applications where an LCD display is undesirable.
The Dranetz HDPQ® Visa SP measures to all current industry standards, including IEC 61000-4-30 Class A Edition 31, IEC 61000-4-7, IEEE 1159, IEEE 519:2014 and more. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low and medium frequency transients through peak, waveshape, rms difference trigger methods. Applications include general purpose PQ, demand & energy monitoring, capacitor evaluations, harmonics & non-sinusoidal waveform troubleshooting and more.
The Dranetz HDPQ Visa SP enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and review data and control the instrument using either the VNC interface in our Dran-View 7 software or a free VNC client on your Smartphone or Tablet from anywhere with connectivity to the instrument.
Compare: Dranetz HDPQ Family Feature Guide.
Dranetz HDPQ Visa & HDPQ Visa SP – Precision
• High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
• Eight channels, 4 voltage & 4 current
• Advanced PQ – IEC 61000-4-30 Class A Ed 31 & IEEE 1159 compliant
• Harmonics – IEC 61000-4-7, IEEE 519:2014
• Transient capabilities – V & I waveshape triggers. Well beyond standards requirements
• 100 cycle pre/post trigger buffer
• EN 50160 Ed 3
• Motor AnswerModule®
Dranetz HDPQ Visa & HDPQ Visa SP – Communications
• Ethernet, USB, Bluetooth (optional)
• VNC for full remote control from Dran-View 7 or a 3rd party App
• Apple & Android apps with real time metering and alarm Dashboard
Dranetz HDPQ Visa & HDPQ Visa SP – Safe & Rugged
• Arc Flash Safety
• UL/cUL listed and CE approved
• IP65 enclosure for harsh and outdoor environments
• Automatic circuit detection and feedback on proper connection of the instrument
Dranetz HDPQ Visa & HDPQ Visa SP – User Interface
• Automatic setups – PQ, Demand and Energy
• Tablet-like GUI that is icon driven, has taskbar shortcuts, and a Dashboard (only available remotely on the Dranetz HDPQ Visa SP)
Dranetz HDPQ Visa & HDPQ SP – Productivity
• Mini-Report – Screen snapshots, XML file. Easily uploaded and emailed!
• PQ & Energy Dashboard’s for real time alarming
• Dran-View 7 power quality analysis software
• Rescue kit – Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors and more
• Post processing – Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument
Dranetz HDPQ Visa and HDPQ Visa SP – Measured Parameters
(4) Differential AC/DC Voltage: 512 samples/cycle, 16 bit resolution
- 40-1000Vrms, +/- 0.1% reading. <40V +/- 0.1% reading +/- 0.05% FS
- IEC 61000-4-30 Class A Ed 31: 60-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin
- Transients – 0-1414Vpk, +/- .2% of Udin
(4) AC/DC Current: 512 samples/cycle, 16 bit resolution
- Range (rms) probe dependent, +/- 0.1% reading +/- 0.05% FS
- Transients – Range probe dependent
Frequency: 10 sec window
- 16-25Hz, 42.5-69Hz, +/- 0.01Hz
Distortion – 200ms, 3 sec, 10 min windows
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for I>=1% Inom,
I Ind Harm: DC, 2-63, +/- 5% for I>=1% Inom
Misc.
Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1
General Specifications (Dranetz HDPQ Visa and HDPQ Visa SP unless otherwise noted)
Dranetz HDPQ Visa SP (IP65)
- Size: (11″w x 6.5″h x 2.5″d), (27.9cm x 16.5cm x 6.4cm)
- Weight: 3.8lbs, 1.72kg
- Operating temperature: -10 to 50 deg C (14 to 122 deg F)
- Storage temperature: -40 to 85 deg C (-40 to 185 deg F)
- Humidity: 10-90 non condensing
- Power Supply: 90-600VAC/500VDC (50/60Hz). Powered by the phase being measured, or other source
Clock accuracy and resolution
- Internal: +/- 1 sec/day at 25 deg C
- NTP: +/-10 msec
- GPS: +/-1 msec
Battery capacity and charge time:
- Dranetz HDPQ Visa SP: 30 minutes run time on full charge, 3 hours charge time
Memory size: 4GB
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean
Communications
Ethernet
Bluetooth (optional)
USB On the Go (OTG)
VNC remote control
Android & Apple Apps
Ease of Use Features
Automatic Setups – Start monitoring in seconds!
Pre-programmed monitoring modes – Pre-configured setups for various applications
Dashboards – Power Quality, Demand & Energy – Immediately know when events have been recorded
Simultaneous Power Quality, Demand & Energy monitoring
Mini-Report – Take screen snapshots that can be uploaded to your computer and included in reports, attached to emails, etc.
Power the instrument from the circuit being measured, or another source (SP Only)
Standards Compliance
Power Quality
IEC 61000-4-30 Class A Edition 31
IEEE 1159: 2009
Power
IEEE 1459: 2000
Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519: 2014
Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011
Compliance/Testing
EN 50160: 2010
Calculated Parameters
Power/Energy – 1 Second sampling
Real Power (W) – P: meets 0.2S requirements, range probe dependent
Apparent Power (VA) – S: meets 0.2S requirements, range probe dependent
Reactive Power (var) – Q: meets 0.2S requirements, range probe dependent
Power Factor (W/VA) -”true” -1 to 0 to 1
Displacement PF -1 to 0 to 1
Demand (in W): meets 0.2S requirements, range probe dependent
Energy (in Wh): meets 0.2S requirements, range probe dependent
- Power Quality surveys and diagnostics
- Substation monitoring
- Energy management & load surveys
- Data logging
- Harmonic analysis
- Compliance testing
- Flicker testing
- Alternative energy production – Solar, wind – panel strings, batteries, inverters, grid interconnect
- Capacitor testing
- Outdoor and harsh monitoring environments including those that require an IP65 enclosure (Dranetz HDPQ Visa SP only)
