Dranetz HDPQ Xplorer-400 SP (Rated IP65) Power Quality Analyzers
$0.00

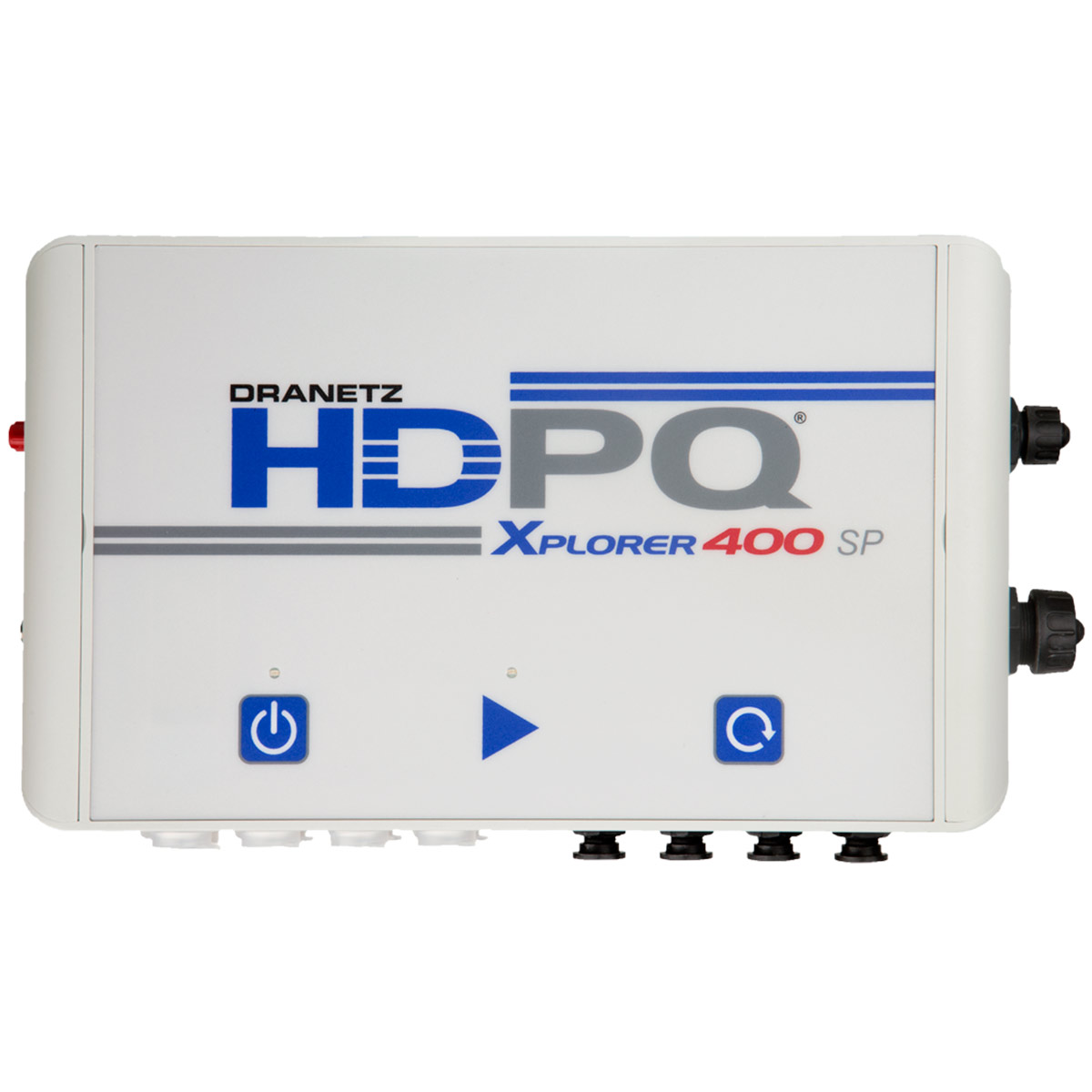

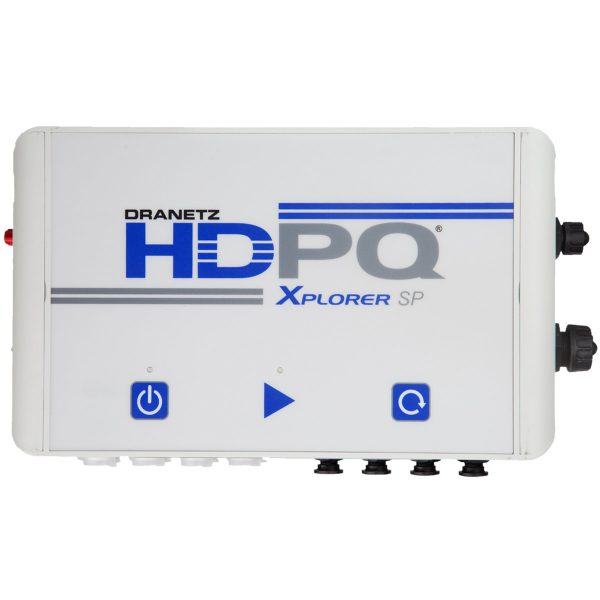

Dranetz HDPQ® Xplorer 400 SP
Designed for Commercial, Military, Aviation, and Naval Industries with 400Hz Monitoring Capability!
- Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more – Meets & Exceeds Industry Standards
- Tests 400 Hz & 50/60Hz – Specialized Aircraft, Naval and Other Applications AND Standard Power Monitoring
- High Speed Transient Capture – Don’t Miss a PQ Event
- IEC 61000-4-30 Class A Edition 3 PQ compliant – Reliable Measurements from a Reputable Manufacturer
- Power Quality, demand & energy analysis – Complete Power Monitoring Surveys
- Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more

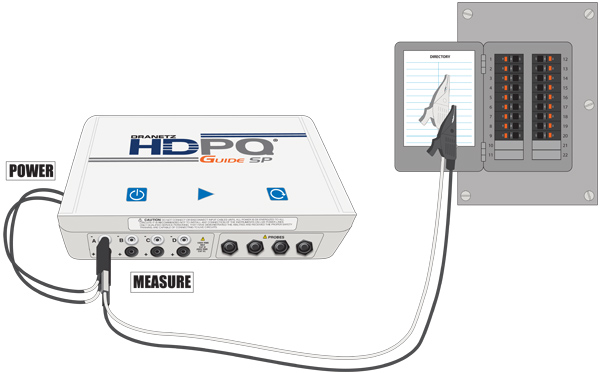

- Powered by the Phase Being Measured!

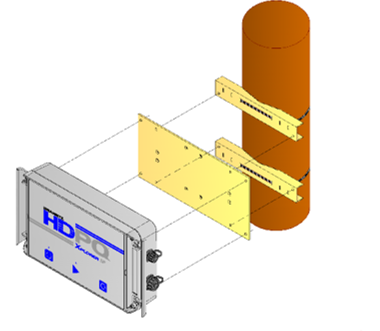

- IP65 enclosure
- Dran-View 7 Software – Powerful Data Analysis, Reporting & Remote Control
- Ethernet & Wireless Communications for Remote Control & Data Downloading – Be Safe & Productive
- Also available as a true portable with a 7″ display – See the Dranetz HDPQ Xplorer 400 Plus
- 3 year factory warranty
- Made in the USA in our ISO 9001:2015 certified factory
The Dranetz HDPQ Xplorer 400 SP (IP65) power quality analyzer takes PQ, Demand and Energy monitoring to new heights by adding 400Hz monitoring capabilities to the already powerful Dranetz HDPQ Xplorer SP. The Dranetz HDPQ Xplorer 400 SP is designed for applications such as aviation, naval, military, etc. requiring 400Hz capabilities that are not available in most PQ and Energy analyzers which typically only measure 50/60Hz. The Dranetz HDPQ Xplorer 400 SP is also an all-purpose tool that can be used for any traditional 50/60Hz application. In addition to the 400Hz applications, the Dranetz HDPQ Xplorer 400 SP is perfect for applications such as power quality surveys, voltage and current transient studies, fault recording, inrush, motor testing, harmonic analysis, advanced distortion analysis, demand/energy/load studies, and many more.
The Dranetz HDPQ Xplorer 400 SP has the same measurement and communications capabilities as the HDPQ Xplorer 400 Plus, but is housed in an IP65 enclosure without an LCD display, and can also be powered by the circuit being measured. The IP65 enclosure of the Dranetz HDPQ Xplorer 400 SP greatly expands the applications of the Dranetz HDPQ Xplorer into outdoor and harsh environments, along with other applications where an LCD display is undesirable.
The Dranetz HDPQ Xplorer 400 SP offers best in class PQ monitoring capabilities. It measures to all current industry standards, including IEC 61000-4-30 Class A Edition 31, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, and more. With its high speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse won’t miss a PQ event. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.
The Dranetz HDPQ Xplorer 400 SP enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and review data and control the instrument using either the VNC interface in our Dran-View 7 software or a free VNC client on your Smartphone or Tablet from anywhere with connectivity to the instrument.
Compare: Dranetz HDPQ Family Feature Guide.
Dranetz HDPQ Xplorer 400 SP – Precision
• High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
• High Speed Digitized Transients – 1us, 10 to 2000Vpk
• 50/60Hz and 400Hz operating modes
• Eight channels, 4 voltage & 4 current
• AnswerModules – Sag directivity, PF capacitor identification, motor – automatic event categorization
• Advanced PQ – IEC 61000-4-30 Class A Ed 31 & IEEE 1159 compliant
• Harmonics – IEC 61000-4-7, IEEE 519 (2014)
• Transient capabilities – V & I – waveshape triggers, high speed. Well beyond standards requirements
• IEEE 1459 Advanced Power Measurements
• 10,000 cycle pre/post trigger buffer
• EN 50160 Ed 3
Dranetz HDPQ Xplorer 400 SP – Communications
• Ethernet, Wi-Fi, USB, Bluetooth (optional)
• VNC for full remote control from Dran-View 7 or a 3rd party App
• Apple & Android apps with real time metering and alarm Dashboard
Dranetz HDPQ Xplorer 400 SP – Safe & Rugged
• Arc Flash Safety
• UL/cUL listed and CE approved
• IP65 enclosure for harsh and outdoor environments
• Automatic circuit detection and feedback on proper connection of the instrument User Interface
Dranetz HDPQ Xplorer 400 SP – User Interface
• Automatic setups – PQ, Demand and Energy
• Tablet-like GUI that is icon driven, has taskbar shortcuts, and a Dashboard (only available remotely on the Dranetz HDPQ Xplorer 400 SP)
Dranetz HDPQ Xplorer 400 SP – Productivity
• Mini-report – Screen snapshots, XML file. Easily uploaded and emailed!
• PQ & energy Dashboard’s for real time alarming
• AnswerModules – automatic event categorization
• Dran-View 7 power quality analysis software
• Rescue kit – Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors and more
• Post processing – Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument
Measured Parameters

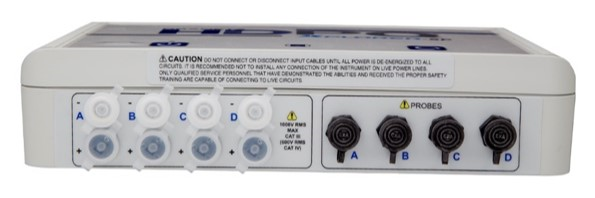

(4) Differential AC/DC Voltage: 512 samples/cycle, 16 bit resolution
- 40-1000Vrms, +/- 0.1% reading. <40V +/- 0.1% reading +/- 0.05% FS
- IEC 61000-4-30 Class A Ed 31: 60-1000Vrms, ±0.1 % of Udin, range of 10% – 150% of Udin
- Transients – rms: 0-1414Vpk, ±0.2 % of Udin
- Transients – High Speed: 10-2000Vpk, +/- 10% of reading, +/- 0.5% FS
(4) AC/DC Current: 512 samples/cycle, 16 bit resolution
- Range (rms) probe dependent, +/- 0.1% reading +/- 0.05% FS
- Transients – Range probe dependent
- Transients – High Speed: Range probe dependent., 10% of Reading, +/- 0.5%FS
Frequency: 10 sec window
- 2.5-69Hz, +/- 0.01Hz, 380-420Hz +/- 0.1Hz
General Specifications
Dranetz HDPQ Xplorer 400 SP (IP65)
- Size: (11″w x 6.5″h x 2.5″d), (27.9cm x 16.5cm x 6.4cm)
- Weight: 3.8lbs, 1.72kg
- Operating temperature: -10 to 50 deg C (14 to 122 deg F)
- Storage temperature: -40 to 85 deg C (-40 to 185 deg F)
- Humidity: 10-90 non condensing
- Power Supply: 90-600VAC/500VDC (50/60Hz). Powered by the phase being measured, or other source
Clock accuracy and resolution
- Internal: +/- 1 sec/day at 25 deg C
- NTP: +/-10 msec
- GPS: +/-1 msec
Battery capacity and charge time:
- Dranetz HDPQ Xplorer 400 SP: 30 minutes run time on full charge, 3 hours charge time
Memory size: 4GB
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean
Communications
Ethernet, 802.11 b/g/n Wireless (available without Wi-Fi as a special order)
USB On the Go
Bluetooth (optional) via USB adapter
VNC remote control
Android & Apple App
Ease of Use Features
Automatic Setups – Start monitoring in seconds!
Pre-programmed monitoring modes – Pre-configured setups for various applications
AnswerModules®– Sag/Dip directivity, PF Cap, Motor
Dashboards – Power Quality, Demand & Energy – Immediately know when events have been recorded
Simultaneous Power Quality, Demand & Energy monitoring
Mini-Report – Take screen snapshots that can be uploaded to your computer and included in reports, attached to emails, etc.

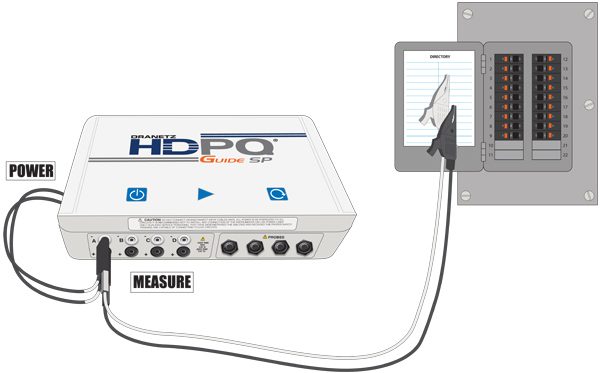

Power the instrument from the circuit being measured, or another source
Standards Compliance (50/60Hz systems only)
Power Quality
IEC 61000-4-30 Class A Edition 31
IEEE 1159: 2009
Power
IEEE 1459: 2000
Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519: 2014
Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011
Compliance/Testing
EN 50160: 2010
Calculated Parameters
Power/Energy – 1 Second sampling
Real Power (W) – P: meets 0.2S requirements, range probe dep.
Apparent Power (VA) – S: meets 0.2S requirements, range probe dep.
Reactive Power (var) – Q: meets 0.2S requirements, range probe dep.
Power Factor (W/VA) -”true” 1 to 0 to 1
Displacement PF -1 to 0 to +1
Demand (in W): meets 0.2S requirements, range probe dep.
Energy (in Wh): meets 0.2S requirements, range probe dep.
Distortion – 200ms, 3 sec, 10 min windows
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127 @50/60Hz, 2-15 @400Hz, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for V>=1% Vnom,
I Ind Harm: DC, 2-63@50/60Hz, 2-15 @400Hz, +/- 5% for I>=1% Inom
Misc.
Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1 (50/60Hz only)
Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1 (50/60Hz only)
- Power Quality surveys and diagnostics
- Power surveys
- Motor testing & diagnosis
- Fault recording
- Transient recording
- Inrush testing for transformers, motors, etc.
- Energy management & load surveys
- Data logging
- Harmonic analysis
- Advanced load distortion and imbalance
- Alternative energy production – Solar, Wind – Panel strings, batteries, inverters, grid interconnect, forward & reverse energy
- Compliance testing
- Flicker testing
- Capacitor testing
- Outdoor and harsh monitoring environments including those that require an IP65 enclosure (Dranetz HDPQ Xplorer 400 SP only)
