Dranetz HDPQ Guide SP (Rated IP65) Power Quality Analyzers
$0.00

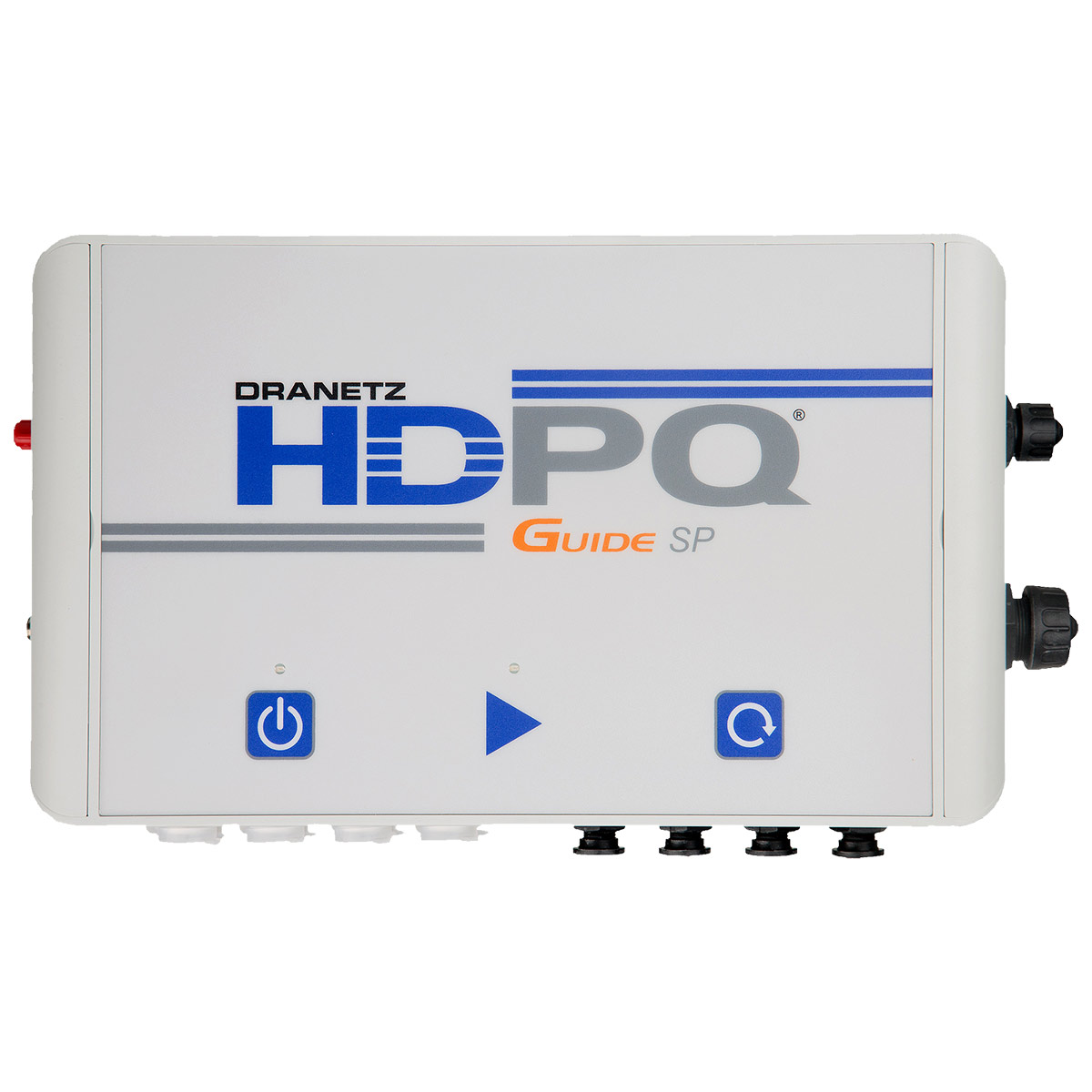

Dranetz HDPQ® Guide SP
The Best Combination Of Value and Technology In a Power Quality Analyzer – Safe, Powerful, & Intelligent
- Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more – Meets & Exceeds Industry Standards
- IEC 61000-4-30 Class A Edition 3 PQ compliant – Reliable Measurements from a Reputable Manufacturer
- Power Quality, demand & energy analysis – Complete Power Monitoring Surveys
- Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more
- Powered by the Phase Being Measured!
- IP65 enclosure
- AnswerModules® Included
- Dran-View 7 Software – Powerful Data Analysis, Reporting & Remote Control
- Ethernet & Wireless Communications for Remote Control & Data Downloading – Be Safe & Productive
- Tests 50/60Hz and 16/25Hz
- Also available as a true portable with a 7″ display – See the Dranetz HDPQ Guide Plus
- 3 year factory warranty
- Made in the USA in our ISO 9001:2015 certified factory
The Dranetz HDPQ Guide SP (IP65) power quality analyzer offers the best combination of value & technology from Dranetz, or any other PQ analyzer available! It includes all of the features of the Dranetz HDPQ Visa SP instrument, but adds Wi-Fi communications, AnswerModules®, and a 10,000 cycle recording buffer for fault and inrush recording! The Dranetz HDPQ Guide SP has the same measurement and communications capabilities as the HDPQ Guide Plus, but is housed in an IP65 enclosure without an LCD display, and can also be powered by the circuit being measured. The IP65 enclosure of the Dranetz HDPQ Guide SP greatly expands the applications of the Dranetz HDPQ Xplorer into outdoor and harsh environments, along with other applications where an LCD display is undesirable.
The Dranetz HDPQ Guide SP provides you the best in class power quality monitoring capabilities available. It measures to all current industry standards, including IEC 61000-4-30 Class A Edition 31, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, and more. Equipped with 8 independent channels, automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data in seconds. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy, and load balancing. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity, and motor analysis/reporting.
The Dranetz HDPQ Guide SP enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and review data and control the instrument using either the VNC interface in our Dran-View 7 software or a free VNC client on your Smartphone or Tablet from anywhere with connectivity to the instrument.
Compare: Dranetz HDPQ Family Feature Guide.
Dranetz HDPQ Guide SP – Precision
• High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
• Eight channels, 4 voltage & 4 current
• AnswerModules – Sag directivity, PF capacitor identification, motor – automatic event categorization
• Advanced PQ – IEC 61000-4-30 Class A Ed 31 & IEEE 1159 compliant
• Transient capabilities – V & I waveshape triggers. Well beyond PQ standards requirements
• 10,000 cycle pre/post trigger buffer
• EN 50160 Ed 3
• IEEE 1459 Advanced Power Measurements
• Harmonics – IEC 61000-4-7, IEEE 519 (2014)
Dranetz HDPQ Guide SP – Communications
• Ethernet, Wi-Fi, USB, Bluetooth (optional)
• VNC for full remote control from Dran-View 7 or a 3rd party App
• Apple & Android apps with real time metering and alarm Dashboard
Dranetz HDPQ Guide SP – Safe & Rugged
• Arc Flash Safety
• UL/cUL listed and CE approved
• IP65 enclosure for harsh and outdoor environments
• Automatic circuit detection and feedback on proper connection of the instrument
Dranetz HDPQ Guide SP – User Interface
•Automatic setups – PQ, Demand and Energy
• Tablet-like GUI that is icon driven, has taskbar shortcuts, and a Dashboard (only available remotely on the Dranetz HDPQ Guide SP)
Dranetz HDPQ Guide SP – Productivity
• Mini-Report – Screen snapshots, XML file. Easily uploaded and emailed!
• PQ & Energy Dashboard’s for real time alarming
• AnswerModules – automatic event categorization
• Dran-View 7 power quality analysis software
• Rescue kit – Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors and more
• Post processing – Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument
Dranetz HDPQ Guide SP – Measured Parameters
(4) Differential AC/DC Voltage: 512 samples/cycle, 16 bit resolution
- 40-1000Vrms, +/- 0.1% reading. <40V +/- 0.1% reading +/- 0.05% FS
- IEC 61000-4-30 Class A Ed 31: 60-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin
- Transients – 0-1414Vpk, +/- .2% of Udin
(4) AC/DC Current: 512 samples/cycle, 16 bit resolution
- Range (rms) probe dependent, +/- 0.1% reading +/- 0.05% FS
- Transients – Range probe dependent
Frequency: 10 sec window
- 16-25Hz, 42.5-69Hz, +/- 0.01Hz
Distortion – 200ms, 3 sec, 10 min windows
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for I>=1% Inom,
I Ind Harm: DC, 2-63, +/- 5% for I>=1% Inom
Misc.
Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1
General Specifications
Dranetz HDPQ Guide SP (IP65)
- Size: (11″w x 6.5″h x 2.5″d), (27.9cm x 16.5cm x 6.4cm)
- Weight: 3.8lbs, 1.72kg
- Operating temperature: -10 to 50 deg C (14 to 122 deg F)
- Storage temperature: -40 to 85 deg C (-40 to 185 deg F)
- Humidity: 10-90 non condensing
- Power Supply: 90-600VAC/500VDC (50/60Hz). Powered by the phase being measured, or other source
Clock accuracy and resolution
- Internal: +/- 1 sec/day at 25 deg C
- NTP: +/-10 msec
- GPS: +/-1 msec
AC Adapter: 100-240Vac 50/60Hz
Battery capacity and charge time:
- Dranetz HDPQ Guide SP: 30 minutes run time on full charge, 3 hours charge time
Memory size: 4GB
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean
Communications
Ethernet 802.11 b/g/n Wireless (available without Wi-Fi as a special order)
Bluetooth (optional) via USB Adapter
USB On the Go (OTG)
VNC remote control
Android & Apple Apps
Ease of Use Features
Automatic Setups – Start monitoring in seconds!
Pre-programmed monitoring modes – Pre-configured setups for various applications
AnswerModules® – Sag/Dip directivity, PF Cap, Motor Health
Dashboards – Power Quality, Demand & Energy – Immediately know when events have been recorded
Simultaneous Power Quality, Demand & Energy monitoring
Mini-Report – Take screen snapshots that can be uploaded to your computer and included in reports, attached to emails, etc.
Power the instrument from the circuit being measured, or another source (SP Only)
Standards Compliance
Power Quality
IEC 61000-4-30 Class A Edition 31
IEEE 1159: 2009
Power
IEEE 1459: 2000
Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519:2014
Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011
Compliance/Testing
EN 50160: 2010
Calculated Parameters
Power/Energy – 1 Second sampling
Real Power (W) – P: meets 0.2S requirements, range probe dependent
Apparent Power (VA) – S: meets 0.2S requirements, range probe dependent
Reactive Power (var) – Q: meets 0.2S requirements, range probe dependent
Power Factor (W/VA) -”true” -1 to 0 to 1
Displacement PF -1 to 0 to 1
Demand (in W): meets 0.2S requirements, range probe dependent
Energy (in Wh): meets 0.2S requirements, range probe dependent
- Power Quality surveys and diagnostics
- Motor testing & diagnosis
- Fault recording
- Inrush testing for transformers, motors, etc.
- Energy management & load surveys
- Data logging
- Harmonic analysis
- Alternative energy production – Solar, Wind – Panel strings, batteries, inverters, grid interconnect
- Compliance testing
- Flicker testing
- Capacitor testing
- Outdoor and harsh monitoring environments including those that require an IP65 enclosure (Dranetz HDPQ Visa SP only)
